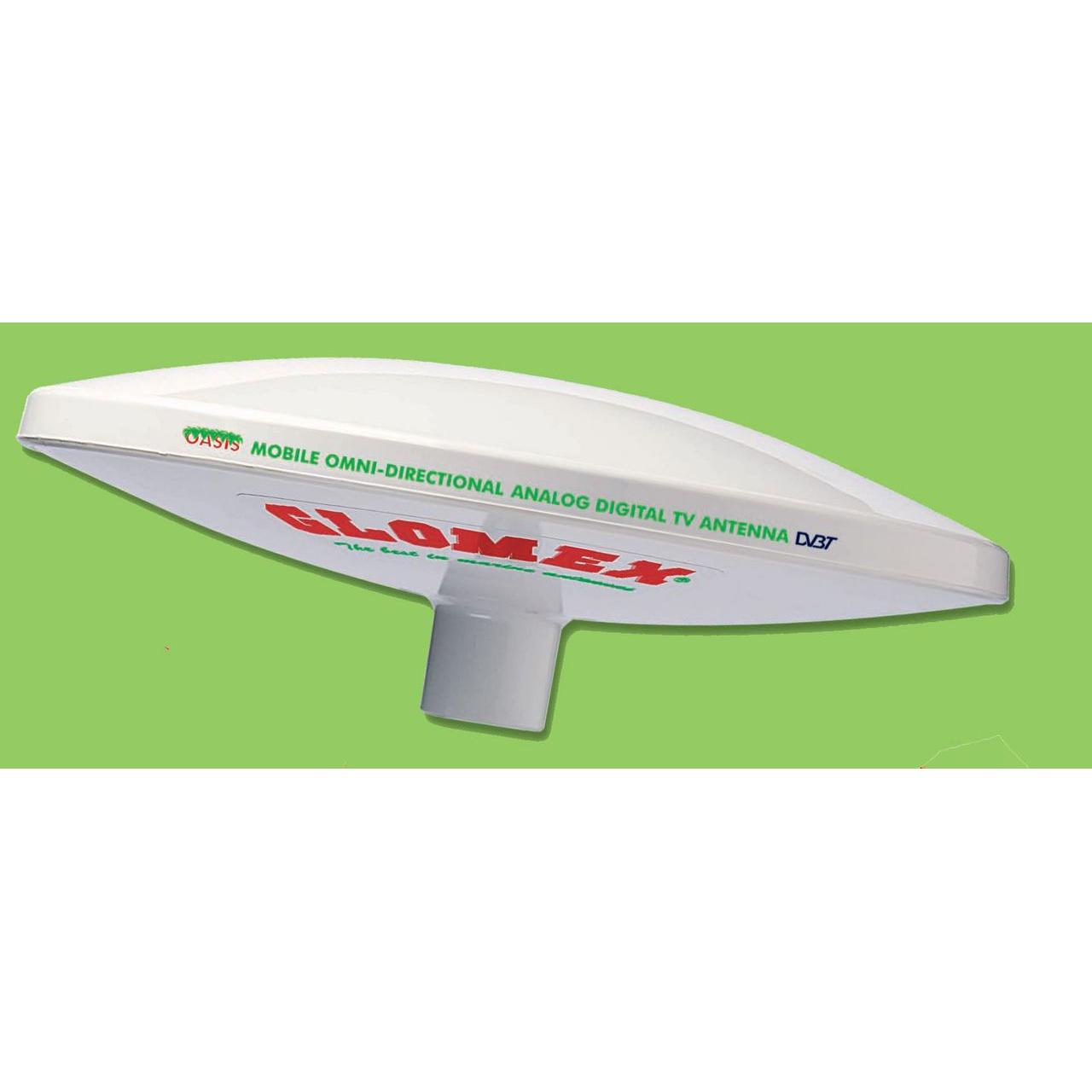

GLOM T480TRUC GLOMEX

Mobile Omni-directional TV Antenna, Analog and Digital TV DVB-T, Diameter 250mm, 12V, Coax Cable 5 meter, Amplifier, Wall and Dashboard Mount, Adjustable Roof Mount.
Long description: The antenna with the most compact dimensions in the market. Features an excellent performance on all UHF frequencies (channels from 21 to 69). It is omni-directional, therefore the orientation is not required. Covered by Glomex Lifetime Warranty, also against the age-ing and the yellowing of its white finish. The high gain totally screened amplifier and low noise factor allow the reception, also of the digital terrestrial television, and has gain control. It can be installed on the wall or dashboard thanks to the mount supplied with the antenna. The OASIS comes complete with all the accessories for the installation. Five meter coaxial cable, wall and dashboard mount, amplifier and TV cable. All is included in the standard equipment as well as a roof mount with adjustable inclination. Glomex innovative SHIFT system allows a quick and temporary installation, ensuring a fast and easy change from one vehicle to another. The new suction pad mount T196 is adjustable in inclination and thanks to the pre-wiring of all the cables and connectors, it allows a quick installation. Also in temporary operation when adding the cigarette lighter adaptor ref.T197

Specifications:
Angle of reception: 360 degrees
Frequency range: 40/890MHz
Noise Factor: 2.2db
Gain Average: 26db
Impedance: 75 Ohms
Amplifier adjustable gain
Power consumption: 20mA
Power Supply: 12V dc
Base diameter: 25mm
Disc diameter: 250mm
Height: 120mm
Weight: 350grs
TV Set Max: 2
Construction material: UV resistant ASA
Termination: connectors F

Mobile Omni-directional TV Antenna, Analog and Digital TV DVB-T, Diameter 250mm, 12V, Coax Cable 5 meter, Amplifier, Wall and Dashboard Mount, Adjustable Roof Mount.

• Long description: The antenna with the most compact dimensions in the market. Features an excellent performance on all UHF frequencies (channels from 21 to 69). It is omni-directional, therefore the

orientation is not required. Covered by Glomex Lifetime Warranty, also against the age-ing and the yellowing of its white finish. The high gain totally screened amplifier and low noise factor allow
the reception, also of the digital terrestrial television, and has gain control. It can be installed on the wall or dashboard thanks to the mount supplied with the antenna. The OASIS comes complete
with all the accessories for the installation. Five meter coaxial cable, wall and dashboard mount, amplifier and TV cable. All is included in the standard equipment as well as a roof mount with
adjustable inclination. Glomex innovative SHIFT system allows a quick and temporary installation, ensuring a fast and easy change from one vehicle to another. The new suction pad mount T196 is
adjustable in inclination and thanks to the pre-wiring of all the cables and connectors, it allows a quick installation. Also in temporary operation when adding the cigarette lighter adaptor ref.T197

Specifications:

• Angle of reception: 360 degrees
• Frequency range: 40/890MHz
• Noise Factor: 2.2db
• Gain Average: 26db
• Impedance: 75 Ohms

Amplifier adjustable gain

• Power consumption: 20mA
• Power Supply: 12V dc
• Base diameter: 25mm
• Disc diameter: 250mm
• Height: 120mm
• Weight: 350grs
• TV Set Max: 2
• Construction material: UV resistant ASA
• Termination: connectors F

Gewicht	4.000 kg
