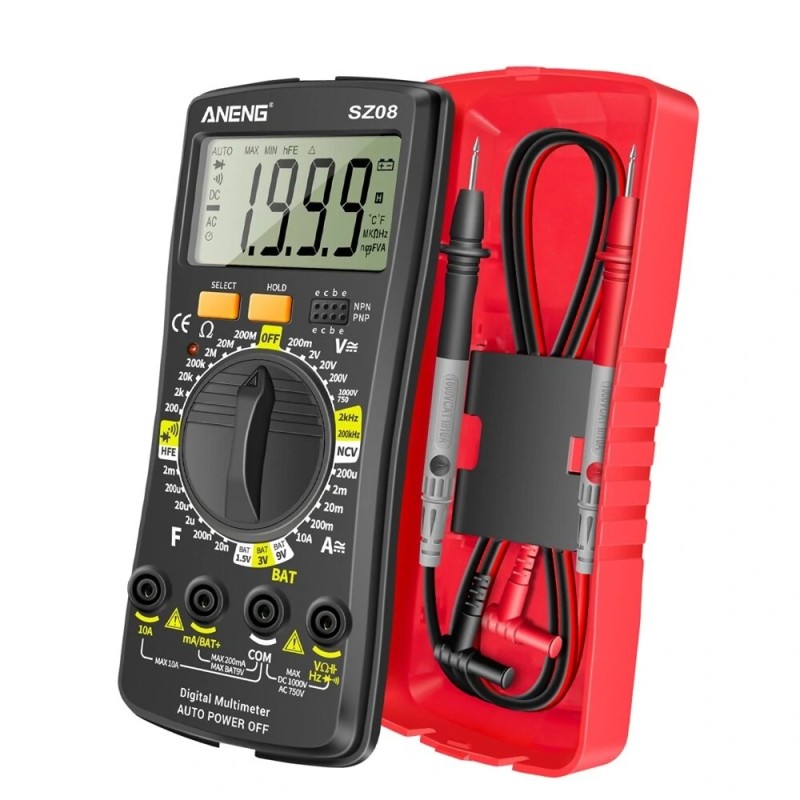

digitale multimeter Aneng SZ08

digitale multimeter Aneng SZ08

ANENG SZ08 2000 Counts Handheld Split Digital Multimeter LCD Portable DC AC Voltage Current Diode NCV Tester Meter
Specification:
Brand name: ANENG
Model: SZ08
Display (LCD): 1999 times
Range: Automatic / manual
Material: ABS + TPE
Automatic shutdown: Yes
Low battery indication: Yes
Data retention: Yes
Diode: Yes
Continuity: Yes
NCV: Yes
Sampling frequency: 3 times / second
Power supply: 3 * AAA battery (not included)
Operating environment: temperature: 0 – 40 ?, humidity: 75%
Storage environment: temperature: – 20 – 60 ?, humidity: 80%
Color: Orange, Black, Red

Functional Range Accuracy
DC voltage 2V / 20V / 200V ± (1.0% + 5)
DC voltage 200mV / 1000V ± (1.5% + 5)
AC voltage 200mV / 2V / 20V / 200V ± (1.3% + 8)
AC voltage 750V ± (1.5% + 10)
DC current 200uA / 2mA ± (1.5% + 8)
DC current 20mA / 200mA ± (1.5% + 5)
DC current 10A ± (2.0% + 10)
AC current 200uA / 2mA / 20mA / 200mA ± (2.0% + 5)
AC current 10A ± (2.5% + 10)
Resistance 200 O / 2K O / 20K O / 200K O / 2M O ± (1.0% + 5)
Resistance 20M O ± (1.5% + 10)
Resistance 200M O ± (5% + 10)
Capacitance 20nF / 200nF / 2uF / 20uF ± (4.0% + 5)
Capacitance 200uF ± (4.5% + 5)
Capacitance 2mF ± (5.0% + 20)
Frequency 2KHz / 200kH ± (1.5% + 82)

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Inclus:
1 X Digital Multimeterdigitale multimeter Aneng SZ08

ANENG SZ08 2000 Counts Handheld Split Digital Multimeter LCD Portable DC AC Voltage Current Diode NCV Tester Meter
Specification:

• Brand name: ANENG
• Model: SZ08
• Display (LCD): 1999 times
• Range: Automatic / manual
• Material: ABS + TPE
• Automatic shutdown: Yes
• Low battery indication: Yes
• Data retention: Yes
• Diode: Yes
• Continuity: Yes
• NCV: Yes
• Sampling frequency: 3 times / second
• Power supply: 3 * AAA battery (not included)
• Operating environment: temperature: 0 – 40 ?, humidity: 75%
• Storage environment: temperature: – 20 – 60 ?, humidity: 80%
• Color: Orange, Black, Red

Functional Range Accuracy
DC voltage 2V / 20V / 200V ± (1.0% + 5)
DC voltage 200mV / 1000V ± (1.5% + 5)
AC voltage 200mV / 2V / 20V / 200V ± (1.3% + 8)
AC voltage 750V ± (1.5% + 10)
DC current 200uA / 2mA ± (1.5% + 8)
DC current 20mA / 200mA ± (1.5% + 5)
DC current 10A ± (2.0% + 10)
AC current 200uA / 2mA / 20mA / 200mA ± (2.0% + 5)
AC current 10A ± (2.5% + 10)
Resistance 200 O / 2K O / 20K O / 200K O / 2M O ± (1.0% + 5)
Resistance 20M O ± (1.5% + 10)
Resistance 200M O ± (5% + 10)
Capacitance 20nF / 200nF / 2uF / 20uF ± (4.0% + 5)
Capacitance 200uF ± (4.5% + 5)
Capacitance 2mF ± (5.0% + 20)
Frequency 2KHz / 200kH ± (1.5% + 82)

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Inclus:
1 X Digital Multimeter

Gewicht	1.000 kg
