piezo actuator AE0203D08 2mm x 3mm x 1
21 juni 2019

piezo actuator AE0203D16 T=2mm x W=3mm

49.00

1 op voorraad

SKU: 03451 Categorie:
Beschrijving

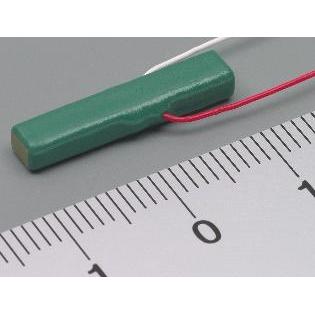

piezo actuator AE0203D16 T=2mm x W=3mm x H=20mm

4 stuks
Operating temperature range
-25 to +85°C
When applied with a DC voltage: Ambient temperature
When driven by an AC voltage: Ambient temperature + Temperature rise due to generated heat
Recommended storage condition
-5 to +40°C / less than 40% R.H.
Recommended storage at room temperature. No condensation.

Maximum driving voltage 150V DC

Displacement
17.4±2.0µm At 150V DC

Blocking force 200 N
Force required for restricting the displacement to 0 when the maximum driving voltage is applied.

Capacitance 0.35 µF ± 20%
f = 1kHz; V=1Vrms

Dissipation Factor
5.0% or less
f = 1kHz; V=1Vrms

Insulation Resistance
50 MOhm
Value obtained in 1 minute at 150V DC

Resonance Frequency
69 kHz
With both ends of the actuator in free state under standard factory conditions.

Tensile strength 1/10 of generated force Typical value of the element under standard factory tests conditions
Young′s Modulus
4.4×1010 N/m2
Typical value of the element under standard factory tests conditions

Temperature Cycle Test Displacement: Initial value ± 20%
Capacitance: Initial value ± 30%
Tan Delta: Less than initial rated value
Insulation resistance: 1MOhm or more
Apperance: No noticeable defect Room temperature 3 min
-25°C 30 min
Room temperature 3 min
+85°C 30 min
Repetition of 10 cycles of the above

piezo actuator AE0203D16 T=2mm x W=3mm x H=20mm

4 stuks
Operating temperature range
-25 to +85°C
When applied with a DC voltage: Ambient temperature
When driven by an AC voltage: Ambient temperature + Temperature rise due to generated heat
Recommended storage condition
-5 to +40°C / less than 40% R.H.
Recommended storage at room temperature. No condensation.

Maximum driving voltage 150V DC

Displacement
17.4±2.0µm At 150V DC

Blocking force 200 N
Force required for restricting the displacement to 0 when the maximum driving voltage is applied.

Capacitance 0.35 µF ± 20%
f = 1kHz; V=1Vrms

Dissipation Factor
5.0% or less
f = 1kHz; V=1Vrms

Insulation Resistance
50 MOhm
Value obtained in 1 minute at 150V DC

Resonance Frequency
69 kHz
With both ends of the actuator in free state under standard factory conditions.

Tensile strength 1/10 of generated force Typical value of the element under standard factory tests conditions
Young′s Modulus
4.4×1010 N/m2
Typical value of the element under standard factory tests conditions

Temperature Cycle Test Displacement: Initial value ± 20%
Capacitance: Initial value ± 30%
Tan Delta: Less than initial rated value
Insulation resistance: 1MOhm or more
Apperance: No noticeable defect Room temperature (3 min)
-25°C (30 min)
Room temperature (3 min)
+85°C (30 min)
Repetition of 10 cycles of the above
