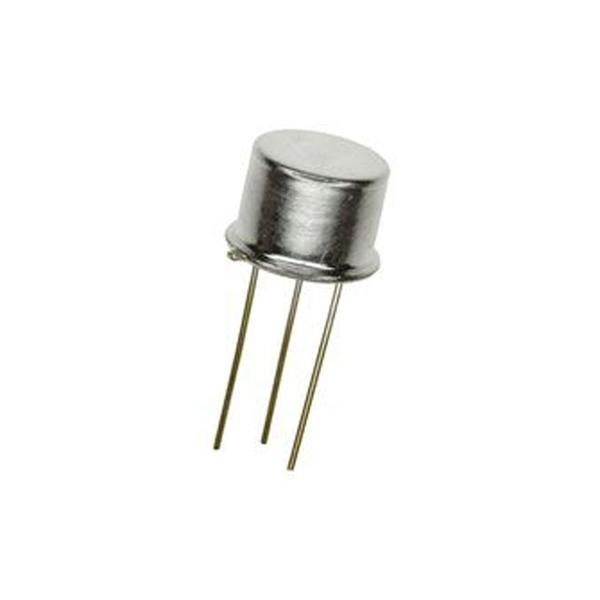

BC461 Bipolar Transistor

BC461 Bipolar Transistor

Type – PNP
Collector-Emitter Voltage: -60 V
Collector-Base Voltage: -75 V
Emitter-Base Voltage: -5 V
Collector Current: -1 A
Collector Dissipation – 10 W
DC Current Gain (hfe) – 40 to 250
Transition Frequency – 50 MHz
Operating and Storage Junction Temperature Range -55 to +200 °C
Package – TO-39BC461 Bipolar Transistor

Type – PNP

• Collector-Emitter Voltage: -60 V
• Collector-Base Voltage: -75 V
• Emitter-Base Voltage: -5 V
• Collector Current: -1 A

Collector Dissipation – 10 W
DC Current Gain (hfe) – 40 to 250
Transition Frequency – 50 MHz
Operating and Storage Junction Temperature Range -55 to +200 °C
Package – TO-39

Gewicht	0.500 kg
