externe s meter / swr / vermogensmeter f

externe s meter / swr / vermogensmeter ft-857 ft-897

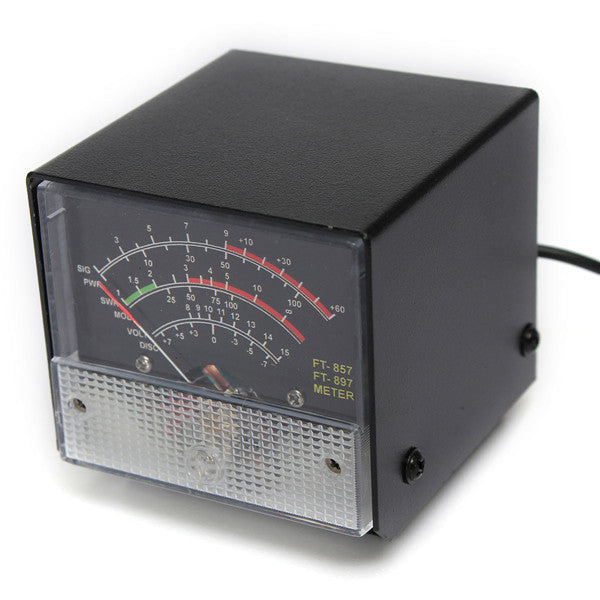

xternal S Meter / SWR / Power Meter For Yaesu FT-857 / FT-897

Specifications :

Size : 65 x 55 x 70mm
Material : Metal
Color : Black / White

FT-857D / FT-897D external display settings header method :

Receive Display Settings :
1. Press [FUNC] key to enter the setup menu, enable the extended menu.
2. Rotate the [SELECT] to call up the menu item No-060 [MTR ARX SEL].
3. Rotate [DIAL] to select the external instrument display :
-SIG : Display input signal strength
-CTR : Discriminator Center Meter
-VLT : Battery voltage
-N / A : Blank
-FS : Buckle instrument 1mA full scale output signal calibration standard external instrument.
-OFF : Turn off the meter.
4. Press [FUNC] key to save settings and exit the setup menu.

Emission display settings :
1. Press [FUNC] key to enter the setup menu, enable the extended menu.
2. Rotate the [SELECT] to call up the menu item No-061 [MTR ATX SEL].
3. Rotate [DIAL] to select the external instrument display :
-PWR : Display transmit power
-ALC : Display automatic level control voltage
-MOD : Display modulation level
-SWR : Display VSWR
-VLT : Display Supply Voltage
-N / A : Blank
-OFF : Turn off the meter.

Calibration method is as follows : externe s meter / swr / vermogensmeter ft-857 ft-897

xternal S Meter / SWR / Power Meter For Yaesu FT-857 / FT-897

Specifications :

• Size : 65 x 55 x 70mm
• Material : Metal
• Color : Black / White

FT-857D / FT-897D external display settings header method :

Receive Display Settings :
1. Press [FUNC] key to enter the setup menu, enable the extended menu.
2. Rotate the [SELECT] to call up the menu item No-060 [MTR ARX SEL].
3. Rotate [DIAL] to select the external instrument display :

• SIG : Display input signal strength
• CTR : Discriminator Center Meter
• VLT : Battery voltage
• N / A : Blank
• FS : Buckle instrument 1mA full scale output signal calibration standard external instrument.
• OFF : Turn off the meter.

4. Press [FUNC] key to save settings and exit the setup menu.

Emission display settings :
1. Press [FUNC] key to enter the setup menu, enable the extended menu.
2. Rotate the [SELECT] to call up the menu item No-061 [MTR ATX SEL].
3. Rotate [DIAL] to select the external instrument display :

• PWR : Display transmit power
• ALC : Display automatic level control voltage
• MOD : Display modulation level
• SWR : Display VSWR
• VLT : Display Supply Voltage
• N / A : Blank
• OFF : Turn off the meter.

Calibration method is as follows :

Gewicht	2.000 kg
