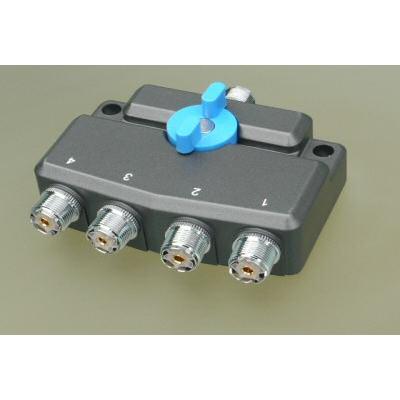

4-Position Coaxial Antenna Switch
Input: UHF-Female (SO239)
Output: 4x UHF-Female (SO239)

Long description: GENERAL:
4-Position Coaxial Antenna Switch

FEATURES, FUNCTIONS AND SPECIFICATIONS:

FREQUENCY RANGE:
DC ~ 900MHz

CONNECTOR TYPE:
Input Port: UHF-Female (SO239)
Output Port: 4x UHF-Female (SO239)

POWER RANGE:
DC ~ 30MHz: 1.5KW
30MHz ~ 200MHz: 1KW
200MHz ~ 500MHz: 500W
500MHz ~ 900MHz: 150W

INSERTION LOSS:
DC ~ 500MHz: =0.10dB
500MHz ~ 900MHz: =0.20dB

OUTPUT PORT ISOLATION:
DC ~ 500MHz: 60.0dB
500MHz ~ 900MHz: 55.0dB

VSWR:
DC ~ 500MHz: =1.10
500MHz ~ 900MHz: =1.25

PACKING INCLUDES:
Antenna Switch
Datasheet

DOR DXSW4M coaxschakelaar coax switch
4-Position Coaxial Antenna Switch

• Input: UHF-Female (SO239)
• Output: 4x UHF-Female (SO239)

Long description: GENERAL:
4-Position Coaxial Antenna Switch

FEATURES, FUNCTIONS AND SPECIFICATIONS:

FREQUENCY RANGE:
DC ~ 900MHz

CONNECTOR TYPE:

• Input Port: UHF-Female (SO239)
• Output Port: 4x UHF-Female (SO239)

POWER RANGE:

• DC ~ 30MHz: 1.5KW
• 30MHz ~ 200MHz: 1KW
• 200MHz ~ 500MHz: 500W
• 500MHz ~ 900MHz: 150W

INSERTION LOSS:

• DC ~ 500MHz: =0.10dB
• 500MHz ~ 900MHz: =0.20dB

OUTPUT PORT ISOLATION:

• DC ~ 500MHz: 60.0dB
• 500MHz ~ 900MHz: 55.0dB

VSWR:

• DC ~ 500MHz: =1.10
• 500MHz ~ 900MHz: =1.25

PACKING INCLUDES:
Antenna Switch
Datasheet

Gewicht	1.000 kg
