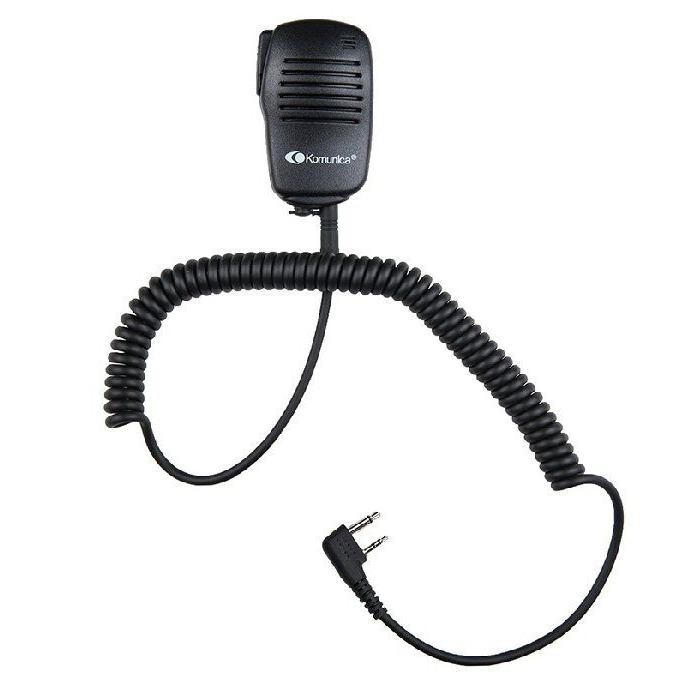

PWR-6001 PORTABEL SPEAKERMICRO

PWR-6001 PORTABEL SPEAKERMICRO
FEATURES, FUNCTIONS AND SPECIFICATIONS:
Type-S: Standard Wiring
2-Pin, 2,5 mm Mono, 3,5 mm Mono, Straight
Distance between the centre of the 2 pins is 10 mm
Type-SL: Standard Wiring
2-Pin, 2,5 mm Mono, 3,5 mm Mono, Right Angle
Wire starts at the side of the 3.5 mm Pin
Distance between the centre of the 2 pins is 10mm

Compact, with reinforced cable and rotating metal clamp.
Fiber-reinforced cable
Metal clip
Headset Jack: 3.5 mm
Cable Diameter: 3.0 mm

Microphone
Microphone Omnidirectional: 9,7 x 6,5 mm (-38 ±3dB)
Microphone size: 70*45*20 mm approx

Speaker
Sensitivity: 106 ± 3dB
Impedance: 8 Ohm ± 10%
Rated Input Power: 1 Watt
Max Output power: 2 Watt
Usage Temperature: -20 °C +55 °CPWR-6001 PORTABEL SPEAKERMICRO

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• Type-S: Standard Wiring

2-Pin, 2,5 mm Mono, 3,5 mm Mono, Straight
Distance between the centre of the 2 pins is 10 mm

• type-SL: Standard Wiring

2-Pin, 2,5 mm Mono, 3,5 mm Mono, Right Angle
Wire starts at the side of the 3.5 mm Pin
Distance between the centre of the 2 pins is 10mm

Compact, with reinforced cable and rotating metal clamp.
Fiber-reinforced cable
Metal clip

• Headset Jack: 3.5 mm
• Cable Diameter: 3.0 mm

Microphone

• Microphone Omnidirectional: 9,7 x 6,5 mm (-38 ±3dB)
• Microphone size: 70*45*20 mm approx

Speaker

• Sensitivity: 106 ± 3dB
• Impedance: 8 Ohm ± 10%
• Rated Input Power: 1 Watt
• Max Output power: 2 Watt
• Usage Temperature: -20 °C +55 °C

Gewicht	1.000 kg
