Cb Antenne T-27N

29.00

Op voorraad

SKU: 04988 Categorie:
Beschrijving

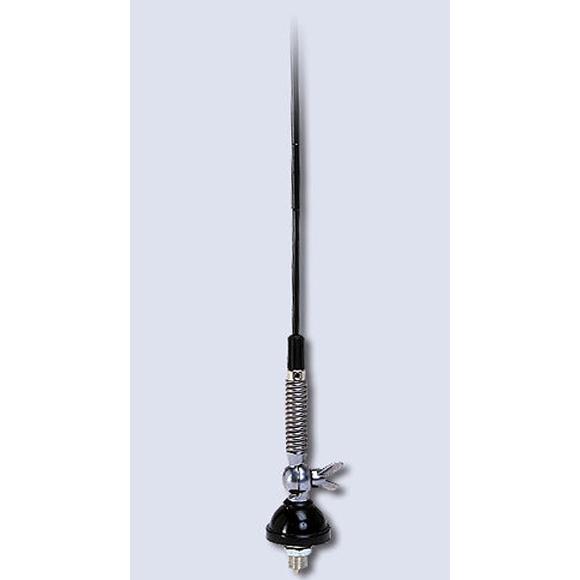

Antenne t27N

Antenna CB Mobile, N-Mount, Length 555 mm, Power 20W / 100W (CW), Bandwidth 440 KHz.

Long description: FEATURES, FUNCTIONS AND SPECIFICATIONS:

FEATURES:
– CB & 10m Mobile antenna
– Tunable from 26.5 to 28.5 MHz
– 180° inclination and adjustable whip, detachable for car-wash
– Suitable for magnetic mount

ELECTRICAL DATA:
– Type: central loaded
– Frequency range: 26.5 … 28.5 MHz
– Impedance: 50 O
– Polarization: linear vertical
– Bandwidth @ SWR = 2: = 440 KHz (40 channel)
– SWR @ res. freq.: = 1.3
– Max. power:
20 Watts (CW) continuous
100 Watts (CW) short time
– Standard mount: N-Type
– Cable lenght / Type: 4 m / RG 58

MECHANICAL DATA:
– Materials: Brass, Copper, Fiberglass, Stainless Steel
– Height (approx.): 555 mm
– Weight (approx.): 330 gr
– Mounting hole: Ø 12.5 mm

Antenna CB Mobile, N-Mount, Length 555 mm, Power 20W / 100W (CW), Bandwidth 440 KHz.

Long description: FEATURES, FUNCTIONS AND SPECIFICATIONS:

FEATURES:
– CB & 10m Mobile antenna
– Tunable from 26.5 to 28.5 MHz
– 180° inclination and adjustable whip, detachable for car-wash
– Suitable for magnetic mount

ELECTRICAL DATA:

  • Type: central loaded
  • Frequency range: 26.5 … 28.5 MHz
  • Impedance: 50 O
  • Polarization: linear vertical
  • Bandwidth @ SWR = 2: = 440 KHz (40 channel)
  • SWR @ res. freq.: = 1.3
– Max. power:
20 Watts (CW) continuous
100 Watts (CW) short time
  • Standard mount: N-Type
  • Cable lenght / Type: 4 m / RG 58

MECHANICAL DATA:
  • Materials: Brass, Copper, Fiberglass, Stainless Steel
  • Height (approx.): 555 mm
  • Weight (approx.): 330 gr
  • Mounting hole: Ø 12.5 mm

Merk
SIRIO
Extra informatie
Gewicht 2.000 kg
